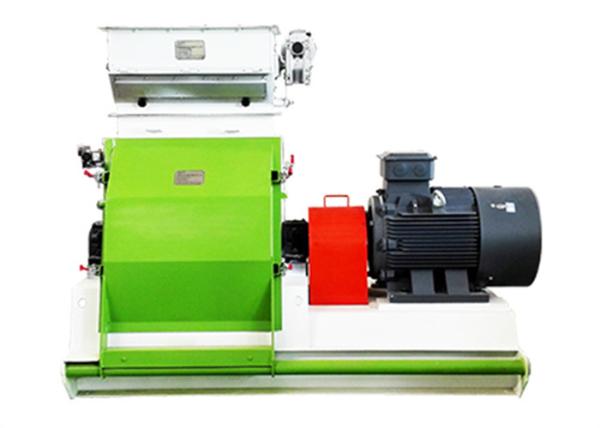

SFSP Type Feed Grain Hammer Mill Machine Industrial Grinding Mill
Machine
Waterdrop feed grain grinder hammer crusher grinding mill machine
is the ideal grinding equipment in poultry feed production, gets
its name due to the waterdrop structure of grinding chamber. This
hammer crusher grinding mill machine is widely applied in grinding
various grains such as corn, broomcorn, wheat, barley, bean and
ground cakes and etc. The final particle sizes smashed by waterdrop
hammer mill are characterized by uniform fineness, which greatly
benefits pelleting or extrusion process. Featured with efficient
grinding, stable performance and popular price, double crane
waterdrop feed hammer mill is favored by large and medium sized
feed plant, food processing enterprise and so on.
Features of Water Drop Type Grinding Mill Machine:
1. Application: used for grinding of poultry and livestock and aqua feed.
2. Feeder : has frequency control of motor speed and electromagnetic coupling
for choice, that the speed of feed could be adjusted.
3.Structure: “U” shaped double grinding structure, increase the beating
frequency of product , guarantee the more uniform particle size,
also increase the output.
4. Advantage:equipped with safety control system ,high capacity,smooth
running,long service life.
5.The following form is under the condition:raw material is
corn,water content ≤14 % , the diameter of sieve hole is 1.0-2.0mm.
Working Principle of Water Drop Type Grinding Mill Machine:
This feed hammer crusher grinding mill machine process is divided
into two parts:
Hammer Blow: There are several crushing methods: crushing,
grinding, smashing and Shear broke. Our machine is smashing, raw
materials in grinding chamber are crushed small granular with
hammer fast rotate and strike.
Mesh Filter: Some of crushed small granular are according with
standard and through screen, and the rest of materials need hitting
again to meet standard.
Main Parameters of Water Drop Type Grinding Mill Machine:
Model | Output capacity(t/h) | Main motor power(kw) | Hammer No.(pcs) | Diameter of the Rotor(mm) | speed of main shaft (r/min) | width of chamber(mm) | Dimension (mm) |
SFSP56x40 | 12-18 | 15/18.5 | 48 | 560 | 1440 | 400 | 1805×850×1105 |
SFSP56x60 | 16-25 | 22/30 | 72 | 560 | 1440 | 600 | 2005×850×1105 |
SFSP60x40 | 2--5 | 30/37 | 56 | 600 | 2930 | 400 | 1805×850×1105 |
SFSP60x60 | 3-7 | 45/55 | 96 | 600 | 2930 | 600 | 2005×850×1105 |
SFSP60x80 | 7-13 | 75/90 | 128 | 600 | 2930 | 800 | 2205×850×1105 |
SFSP66x60 | 2.5-9 | 55/75 | 64 | 660 | 2970 | 600 | 2115×1340×1455 |
SFSP66x80 | 5-13 | 90/110 | 88 | 660 | 2970 | 800 | 2620×1340×1455 |
SFSP66x100 | 7-18 | 132/160 | 128 | 660 | 2970 | 1000 | 3020×1345×1455 |
SFSP132x36 | 10-15 | 75/90 | 36 | 1320 | 1440 | 360 | 2320×2016×2113 |
SFSP132x65 | 15-20 | 132/160 | 64-96 | 1320 | 1440 | 650 | 2610×2016×2113 |
