1-2T/H Animal/poultry/livestock Chicken Pig Cattle Horse

Feed Pellet Production Line

Flowchart for this 1-2t/h feed pellet production line:

1. This Complete Animal/poultry/livestock Chicken Pig Cattle Horse Feed Pellet Production Line is

suitable for producing all kinds of feed pellets for various animals such as

chicken, pig, cow, cattle, goat, rabbit and fish, etc.

2. Just use different size of ring die mould to produce different animal feed

pellet according to the requirement of different animal and poultry.

3. The replacement of the ring die mould is very easy.

Main equipment for this 1-2t/h feed pellet production line:

Imitated Vertical Crusher This simple vertical crusher adopts regrinding crushing technology, widen the screen in 360°,the materials can be crushed averagely. After crushing, when the size of the materials is smaller than the holes in the screen, the materials can be discharged quickly.

Horizontal Single Shaft Ribbon Feed Mixer 1. Special designed, no dead angle for mixing and no block residue inside. 2. One end for feeding, the other end for discharging. Simple structure with small investment. 3. High mixing uniformity degree, CV<7%, 2-4 minutes mixing time. 4. Widely used in feed plant, livestock breeding industries, etc.

Ring Die Feed Pellet Machine 1. SS feeder: 5mm thickness SS material screw, main shaft and paddle. Frequency conversion feeding to ensure homogeneous material. Big open door intensify conditioner makes volume capacity larger by 2-6 times. Lengthen feeder makes the best conditioning effect of raw material. Equipped with steam injection device to avoid the steam reverse ejection. 2. Simens motor 3. SKF Bearing 4. Hoop type detachable ring die: quick detachable encircling ring die procesed by heat treatment vacuum furnace, increase output higher than belt drive by 20%, improves the service life and pellet produced is smooth with high quality. 5. HIgh precision gear, international advanced piping system and imported pressure regulating valve. 6. With full SS door, flume and pull cutter, which is convinient and realiable.

Main Parameter of Animal Chicken Poultry Feed Processing Pellet Machine:

Model	Capacity(t/h)	Power(kw)	Feeding Power(kw)	Conditioner Power(kw)	Weight(kg)	Dimension(mm)
SZLH250	1-2	22	0.55	1.5	1000	1800x1000x1200
SZLH320	3-5	37	1.5	2.2	2500	2200x1000x1500
SZLH350	5-8	55	1.5	3	3500	2500x1100x1600
SZLH420	8-12	110	2.2	7.5	4200	3500x1200x1800
SZLH508	12-18	132/160	2.2	11	5100

Raw Material Application:

1. Alfalfa grass
2. All grains like: corn, soybean, wheat, barley, soybean cake, etc.

Final Feed Pellets forhicken Pig Duck Cattle Sheep Rabbit, etc.

Related Feed Line:

0.5-1t/h small feed line	3-5t/h feed line	5-8t/h feed line	8-12t/h feed line

Feed Line Flowchart:

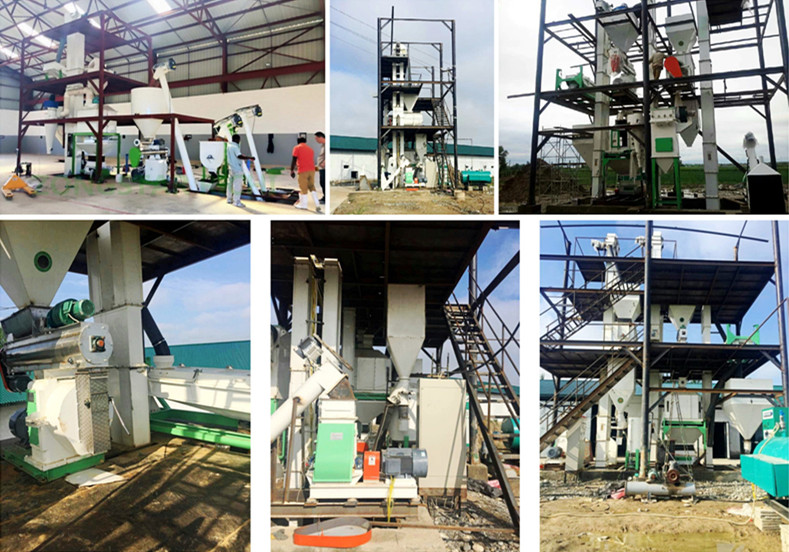

Our Small Feed Projects:
