500-1000 Kg/H Feed Pellet Production Line Poultry Feed Pellets
Making
This Feed Pellet Production Line mainly consists of the following
parts: hammer mill, mixer, feed extruder, dryer, seasoning machine,
and packing machine.
It is suitable for making floating fish feed and other pet food
with different shapes.
Flowchart of Feed Pellet Production Line :
1. Crushing part
2. Mixing part
3. Pelletizing part
4. Cooling part
5. Classifying part
6. Packing part
Main Parameters of Feed Pellet Production Line :
| Model | Capacity(t/h) | Power(kw) | Feeding Power(kw) | Conditioner Power(kw) | Weight(kg) | Dimension(mm) |
| SZLH250 | 1-2 | 22 | 0.55 | 1.5 | 1000 | 1800x1000x1200 |
| SZLH320 | 3-5 | 37 | 1.5 | 2.2 | 2500 | 2200x1000x1500 |
| SZLH350 | 5-8 | 55 | 1.5 | 3 | 3500 | 2500x1100x1600 |
| SZLH420 | 8-12 | 110 | 2.2 | 7.5 | 4200 | 3500x1200x1800 |
| SZLH508 | 12-18 | 132/160 | 2.2 | 11 | 5100 | |
Features of Feed Pellet Production Line:
1. With reasonable technology, high capacity and low energy
consumption. It can produce 1000-3000 tons mash and pellet feed per
shift annually.
2. Modular Structure: The plant is compact, occupies less floor
space and has low requirement on the mill tower, and needs low
investment in civil works. The containerized modular structure is
convenient for assembly and disassembly, facilitates the shipment
and installation.
3. Centralized control: the analogue panel is adopted. All machines
can be interlocked and safe, alarm device is available. The
operation is simple and convenient.
Final Feed Pellets of Poultry Feed Production Line:
Introduction of Ring Die Poultry Feed Pellet Machine:
Flow Chart of Poultry Feed Production Line:

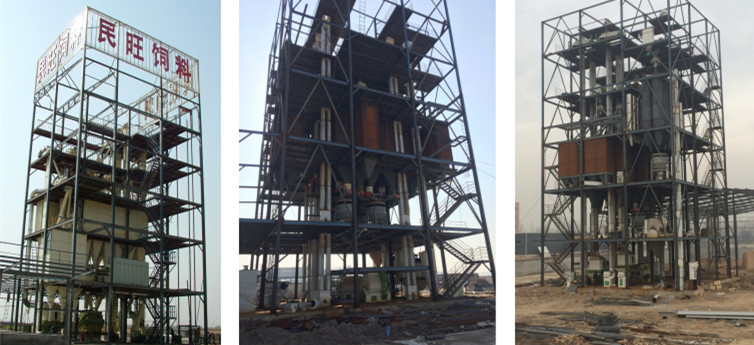

Poultry Feed Production Line Projects:
